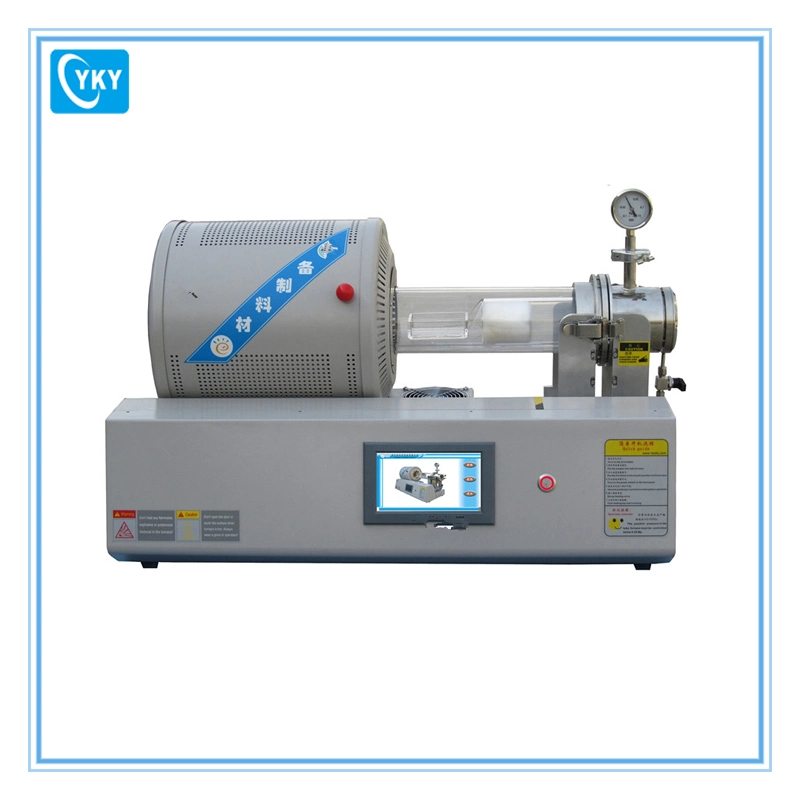

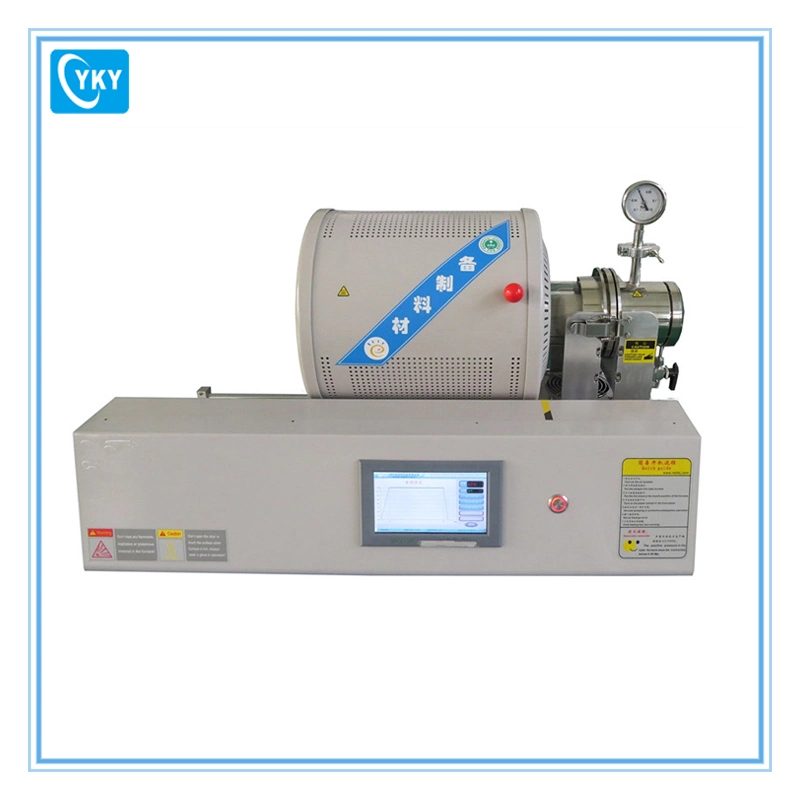

1000°C Max Slideable RTP (4'' OD) Tube Furnace with Rapidly Heating & Cooling
Introduction

CY-OTF-1200X-4-RTP-SL is a RTP (4'' OD) furnace with Infrared Light Heating and Slide Cooling. It is capable of achieving a max. heating rate > 50°C/s and a cooling rate > 10°C/s. The furnace is designed for growing graphene and carbon nanotubes by CVD.

Technical Parameter
Furnace StructureDouble layer steel casing with air cooling keeps furnace surface temperature lower than 60°C.
One set of sliding rails is installed which allows furnace move from one side to another automatically at variable speeds using the control knob.
Vacuum flanges and digital vacuum gauge are installed for immediate use.
Power9KW
VoltageAC 208-240V Single Phase, 50/60 Hz
Max. Temperature1000°C (<1 hour)
800°C (<2 hours)
600°C (continuous)
Note: RTP furnaces should not be heated for long duration due to thin refractories.
Temperature Accuracy+/ - 2°C
Max. Heating Rate50 ºC/s
Max. Cooling RateCooling Rate from 900~200C:
8.3°C/sec (900 - 600°C);
4.4°C/sec (600°C - 500°C);
2.8°C/sec (500°C - 400°C);
1.6°C/sec (400°C - 300°C);
0.9°C/sec (300°C - 200°C);
Process Tube SizeHigh purity fused quartz tube
Ø4" OD x 1400mm L
Sliding Rails / TableDual sliding rails made of Cr plated steel
Sliding length: 1200 mm
Driven by DC motor
Sliding ControlAutomatic sliding is controlled by temperature controller. When the heating program is finished, the furnace will slide from right to left at the set speed. Air fans will blow heated area to achieve fast cooling.
Sliding Range: 340mm
Sliding Speed: 0-70 mm/s; adjustable

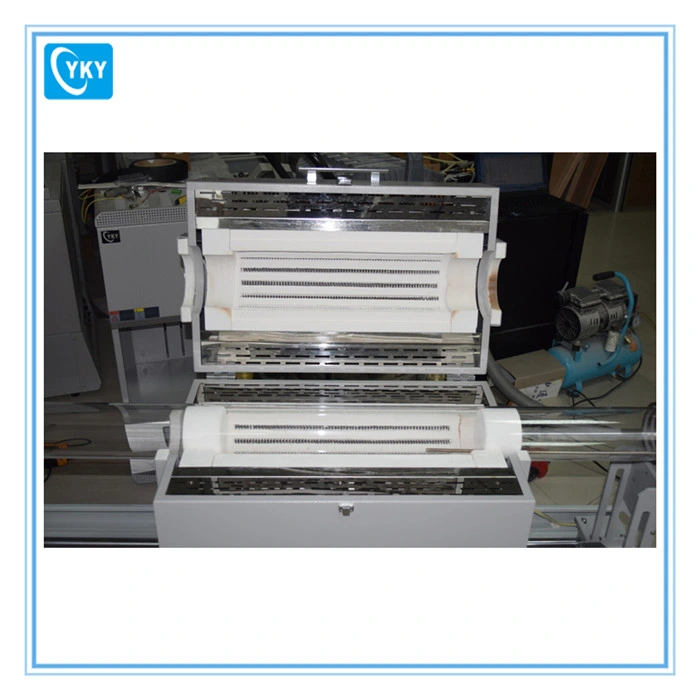

Heating Elements8 pcs Paralleled Infrared Heating ( 1200w each)
ThermocoupleK type, 1/4" dia x 24" length
Temperature ControllerPID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
Built in overheating & broken thermocouple broken protection.
Over temperature protection and alarm allows for operation without attendant(s).
+/- 1 ºC temperature accuracy.
Vacuum FlangesStainless steel vacuum flanges are installed on both ends of the tube.
Right flange:
Hinge-type flange for easy sample loading
Digital vacuum gauge is included
1/4"diameter feedthrough for inserting K type thermal couple
Needle valve with barb gas fitting is built in
Left flange:
KF25 right angle valve is installed for connecting to a vacuum pump
Needle valve for vacuum release is included
Vacuum LevelLimited by vacuum pump
10^-2 torr can be achieved by mechanical pump
10^-4 torr can be reached by molecular pump
Vacuum pump is not included, please order separately at related products section
Flow MeterOne flow-meter is built in with range: 16-160 ml/min
Dimensions460 x 330 x 520 mm ( furnace only)
1800 x 450 x 680 mm ( furnace + sliding)
Net Weight~ 80 Kg
Shipping Package Size74" x 39" x 45"
Shipping Weight300 lbs
WarrantyOne year limited manufacturer's warranty
