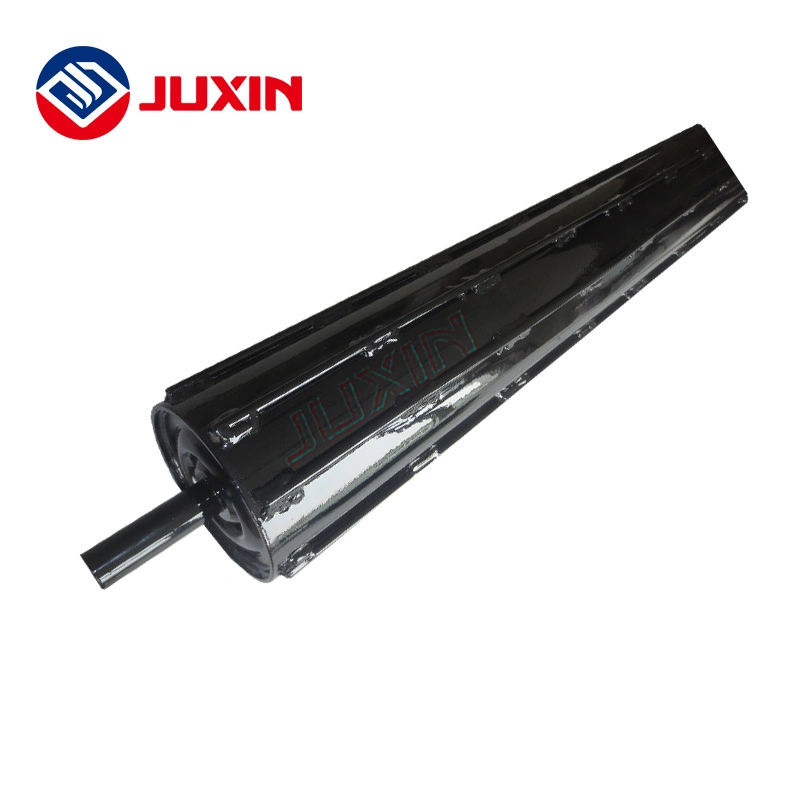

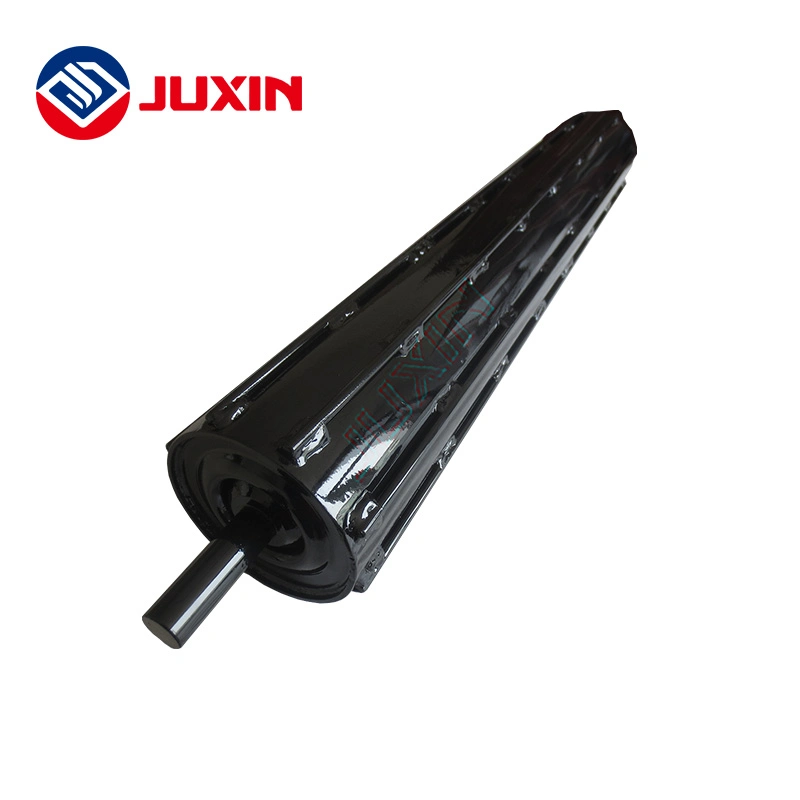

Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal
DescriptionCEMA,  DIN, JIS, AS, SABS, ISO Standard Design & JUXIN ODM
Pipe 1)  Material : Q235 carbon steel equal to DIN S235JR
2)  Roller Diameter : φ63.5mm ~ φ219mm / 2 1/2 inch ~ 8 5/8 inch
3)  Roller Length:  150mm ~ 3000 mm
4)  Thickness : 3.0 ~6.0 mm
Shaft 1)  Material : 45# steel equal to DIN C45
2)  Cold-drawn bright round steel
3)  Shaft Diameter:  20mm,  25mm,  30mm, 40mm, 45mm, 50mm
Bearing1)  Single Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
2)  Brand: SKF,FAG,NSK,HRB, LYC, ZWZ or according to your requirement
Bearing Housing1)  Material : Q235 carbon steel equal to DIN S235JR
2)  Cold press working fit ISO M7 accuracy
3)  Material thickness: 2.5mm ~ 5.0mm
Seals1)  Labyrinth seal, nylon 6 material
2)  JUXIN's patented product
Grease2# Lithium grease lubricant
Painting1)  Ordinary painting, hot galvanized painting, Powder painting
2)  Color: Black, red, yellow, blue or according to your requirement


Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal


Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal
Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal
Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal


Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal
Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal
Carbon  Steel  Belt  Conveyor  Cleaning  Roller  for Mining Coal
QustionsAnswer
Plant Size65,000 Square Meters
Sample Policysample is available for free.But we don't bear the Express cost.
MOQ10 sets for idlers;1 pcs for pulley
Customization Accept Customization
Delivery Time15-20days after receiving the deposit
Payment Term30% T/T in advance, then 70%T/T before shipment.
